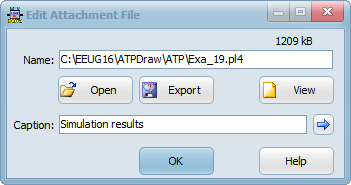

Open Attachment dialog


Attachment files contains additional information not part of the circuit itself. This can be PL4-files with the simulation results for future documentation of reproducibility, ATP-text files (atp/dat/pch/lib/lis etc), PDF or DOC files for pure documentation purposes etc. The files are compressed (zip) in memory and on disc.


Drag & Drop into the circuit window from Windows File Explorer is supported.
